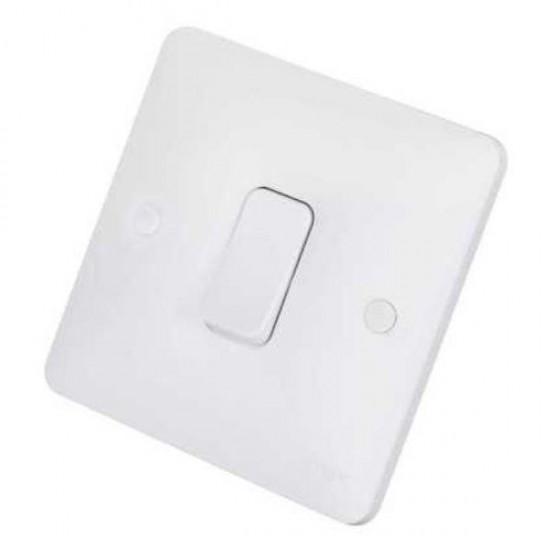

RETRACTIVE PUSH SWITCH

Product Overview:

White Wall Push Switch

Unique patented loop terminal allows neutral looping at the switch

Complies with BS EN 60669-1, a.c only

‘X‘ rated - No need to derate for fluorescent loads

Clear terminal markings: 1-way L1, 2-way L2

Capacity of each terminal - 2 x 4.0mm² conductors

For multigang switches use of a 25mm mounting box will provide increased wiring space

Supplied with M3.5 x 20mm long fixing screws and screw covers

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):24

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Number of rockers/gangs:1

Rated current (A):10

Width of device (mm):86

Additional Features

Feedback-signal contact:No

Halogen free:Yes

Imprint:None

Label space/information surface:No

Method of operation:Rocker

Model:Single push button

Mounting method:Flush mounted

Nominal voltage (V):240

Number of module spaces (modular system):0

Number of poles:2

Surface finish:Glossy

Surface protection:Other

Transparent:No

Type of fastening:Screw mounting

With indicator lamp:No

With lighting:No
