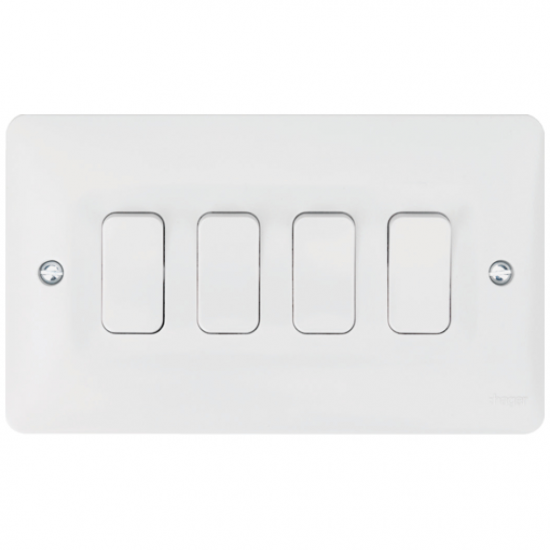

4G 2W WALL SWITCH

Product Overview:

10AX 4 Gang 2 Way White Wall Switch

Unique patented loop terminal allows neutral looping at the switch

Complies with BS EN 60669-1, a.c only.

‘X‘ rated - No need to derate for fluorescent loads

Clear terminal markings: 1-way L1, 2-way L2

Capacity of each terminal - 2 x 4.0mm² conductors

For multigang switches use of a 25mm mounting box will provide increased wiring space

Supplied with M3.5 x 20mm long fixing screws and screw covers

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP21

Depth of device (mm):24

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Rocker

Nominal voltage (V):240

Number of rockers/gangs:4

Rated current (A):10

Width of device (mm):86

Wiring system:Two-way switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Other

Halogen free:Yes

Illumination:No

Label space/information surface:No

Mounting method:Flush mounted

Number of module spaces (modular system):0

Push button switch:No

Recess depth (mm):12

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):10

Type of fastening:Screw mounting

Type of lighting:Other

Washing machine switch:No

With mounting plate:Yes
