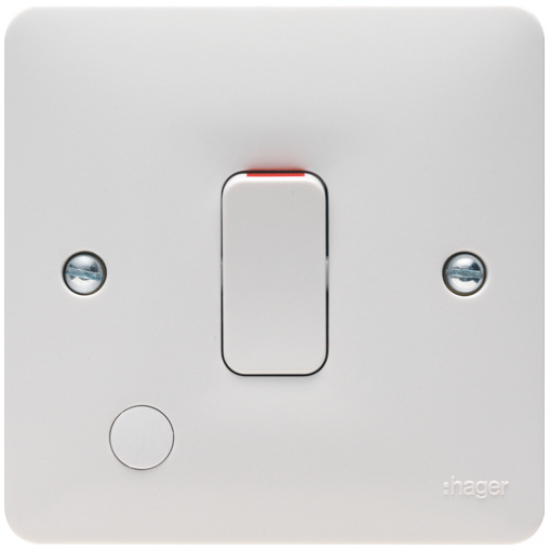

20A DP SWITCH FLEX OUTLET

Product Overview:

20A Double Pole White Wall Switch with Flex Outlet

Complies with BS EN 60669-1, a.c. only

Single screw fast fix cable clamp, accommodates up to 1.5mm² flexible cord.

All terminals are upward facing with clearly printed terminal markings for ease of installation

Capacity of each terminal 2 x 6.0mm² conductors

Supplied with M3.5 x 30mm long fixing screws and screw covers

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):32.8

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Rocker

Nominal voltage (V):240

Number of rockers/gangs:1

Rated current (A):20

Width of device (mm):86

Wiring system:2-pole switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Illuminated (on)

Halogen free:Yes

Illumination:Yes

Label space/information surface:No

Mounting method:Flush mounted

Number of module spaces (modular system):0

Push button switch:No

Recess depth (mm):21.9

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):20

Type of fastening:Screw mounting

Type of lighting:LED replaceable

Washing machine switch:No

With mounting plate:No
