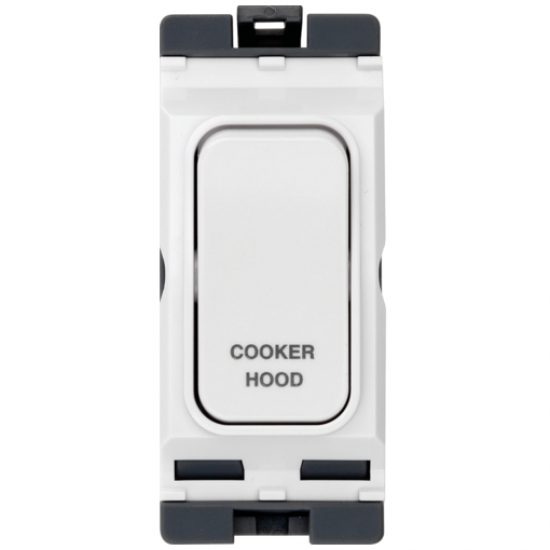

20A 1W DP SWITCH 'COOKER HOOD'

Product Overview:

20A Part M 1 Way Double Pole White Insert Switch Marked COOKER HOOD

Complies with BS EN 606691-1 switches, BS 5733 fuse carrier

Shallowest switch modules which clip in from the front for ease of installation and maintenance

Terminal screw can be accessed with modules clipped into frames

Frames locate to finished wall level

Frames clip together to ease alignment for 6 gang and 8 gang applications

We also offer a bespoke printing service for your individual requirements

Primary Features

Assembly:Basic unit with central cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):24

Height of device (mm):59

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Rocker

Nominal voltage (V):240

Number of rockers/gangs:1

Rated current (A):20

Width of device (mm):25

Wiring system:2-pole switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Other

Halogen free:Yes

Illumination:No

Label space/information surface:No

Mounting method:Flush mounted

Number of module spaces (modular system):1

Push button switch:No

Recess depth (mm):13.1

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):20

Type of fastening:Engage (snap)

Type of lighting:Other

Washing machine switch:No

With mounting plate:No
