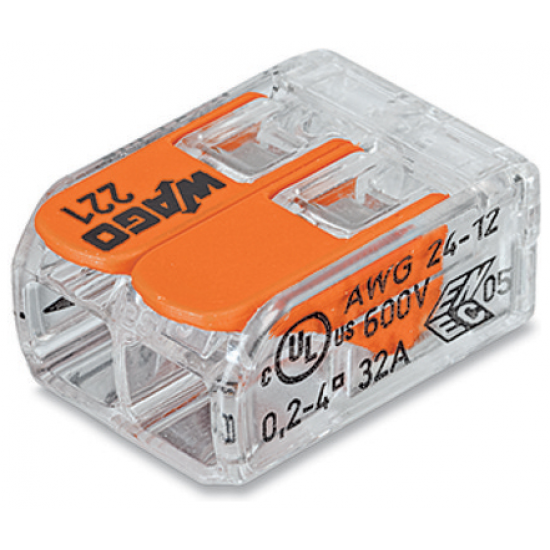

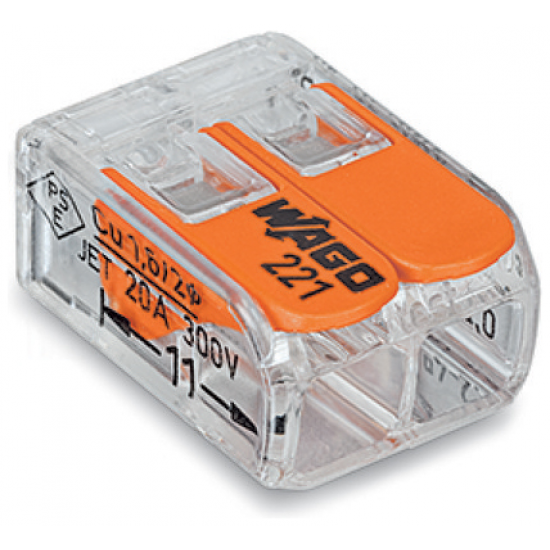

2 PORT LEVER CONNECTOR

Product Overview:

• Brand: Wago
• Colour: Transparent
• Current Rating: 32A

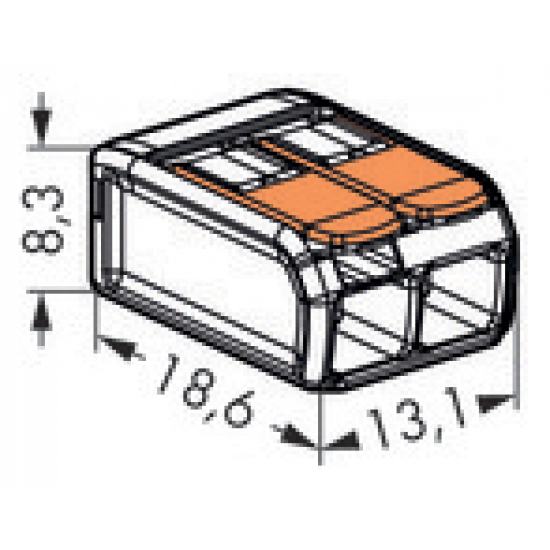

• Dimensions: (L)18.8 mm x (H)8.6 mm x (W)13.2 mm
• Guarantee: 1 Year
• Height: 8.6mm
• Length: 18.8mm
• Number of Ways: 2
• Packaging Types: Box
• Product Range: 221 Series
• Terminal Capacity: 4mm²
• Unspsc V18: 39121409
• Unspsc V24: 39121409
• Voltage Rating: 400V AC
• Weight: 0.00170kg
• Width: 13.2mm
• Compact connector 2 conductor terminal block with levers
• Can connect up to 2 stripped fine-stranded conductors with cross sections from 0.08 to 4mm solid or ferruled stranded wires up to 2.5mm
• Can be used in lighting fixtures, intercom wiring and pumps
