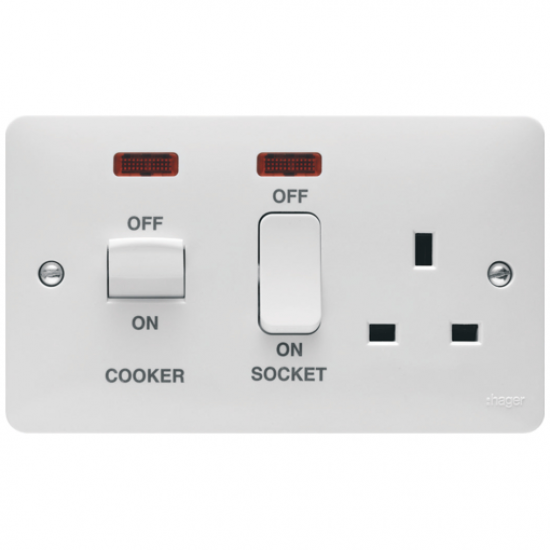

COOKER CONTROL UNIT NEON

Product Overview:

45A Double Pole White Cooker Control Unit with LED Indicator

Complies with BS 4177.

Switch and socket are double pole.

Twin earth as standard.

Main switch is suitable for isolation.

All terminals are upward facing for ease of installation.

Clearly printed terminal marking.

Capacity of terminals: 2 x 6.0mm2 , 1 x 16.0mm2 .

Supplied with M3.5 x 30mm long fixing screws and screw covers.

Primary Features

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):39.6

Height of device (mm):86

Material:Plastic

Model:British Standard

Nominal current (A):45

Nominal voltage (V):250

Width of device (mm):146

With on/off switch:Yes

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Eject-mechanism:No

Fault current protection:No

Frequency (Hz):50 - 60

Halogen free:Yes

Impact resistance (IK rating):Other

Imprint/indication:Without imprint

Insulated mounting:No

Label space/information surface:No

Lockable:No

Mounting method:Flush mounted

Number of active contacts (rectangular):2

Number of active contacts (round):0

Number of module spaces (modular system):0

Number of phases:1

Number of switchable socket outlets:1

Over voltage-/surge protection:No

Rotated central insert:No

Special power supply:No special power supply

Surface finish:Glossy

Surface protection:Untreated

Transparent:No

Type of fastening:Mounting with screw

With enhanced contact protection:No

With function lighting:Yes

With hinged lid:No

With indicator lamp:Yes

With loop through function:Yes

With miniature fuse:No

With orientation lighting:No
