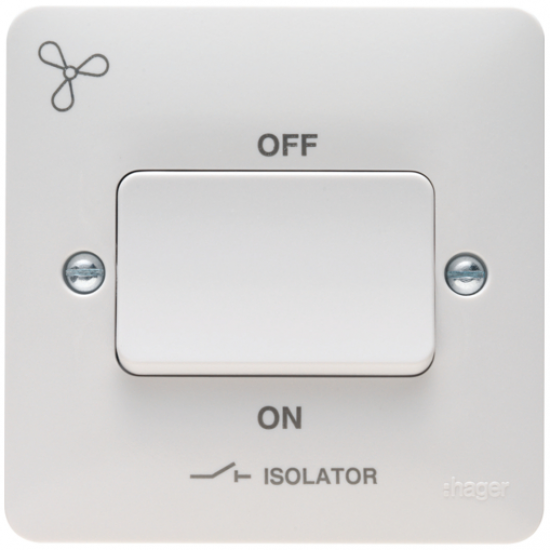

3P FAN ISOLATOR SWITCH FAN SYMBOL

Product Overview:

3 Pole White Isolator Switch with 'FAN' Symbol

Complies with BS EN 60669-2-4

Rated conditional short circuit current (Inc) 1500A tested with Hager MTN110 6kA B curve MCB

Capacity of each terminal 2 x 4.0mm² conductors

Supplied with M3.5 x 20mm long fixing screws and screw covers

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):24

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Rocker

Nominal voltage (V):240

Number of rockers/gangs:1

Rated current (A):10

Width of device (mm):86

Wiring system:3-pole switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Other

Halogen free:Yes

Illumination:No

Label space/information surface:Yes

Mounting method:Surface mounted

Number of module spaces (modular system):0

Push button switch:No

Recess depth (mm):13.1

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):10

Type of fastening:Screw mounting

Type of lighting:Other

Washing machine switch:No

With mounting plate:Yes
