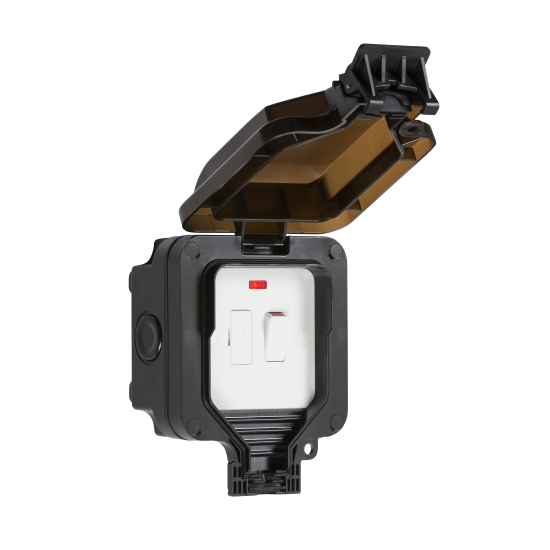

WEATHERPROOF SWITCH SPUR

Product Overview:

• MLA PART CODE: OP63N
• DESCRIPTION: IP66 13A switched fused spur unit with neon
• NET WEIGHT (KG): 0.311
• FINISH: Black

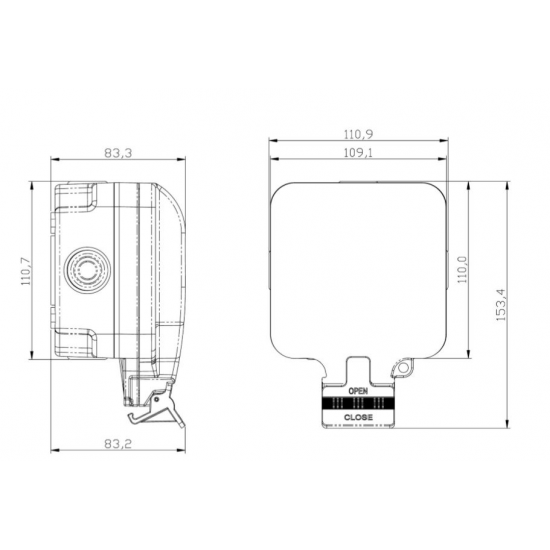

• DIMENSIONS (MM):
• Height: 153.4
• Width: 110.9
• Depth: 83.3
• Projection: 83.2
• CONSTRUCTION: Construction - Polycarbonate
• CLASS: I
• IP RATING: IP66
• IK RATING: IK06
• INPUT VOLTAGE: 230V 50Hz
• SWITCH TYPE: Double Pole
• EARTH TERMINAL: Yes
• NEON INDICATOR: Yes
• LOAD/MAX. LOAD: 13A
• TERMINAL CAPACITY: 3 x 2.5mm² or 2 x 4.0mm²
• CABLE ENTRY (MM): 6 x 20, 1 x 25
• CABLE GLAND INCLUDED: No
• WARRANTY: 2year(s)
• MANUFACTURED IN ACCORDANCE WITH BS 1363
• ORIGIN OF MANUFACTURE: China
• DECLARATION OF CONFORMITY (HELD ON FILE): Yes
• EAN: 5055832974253
