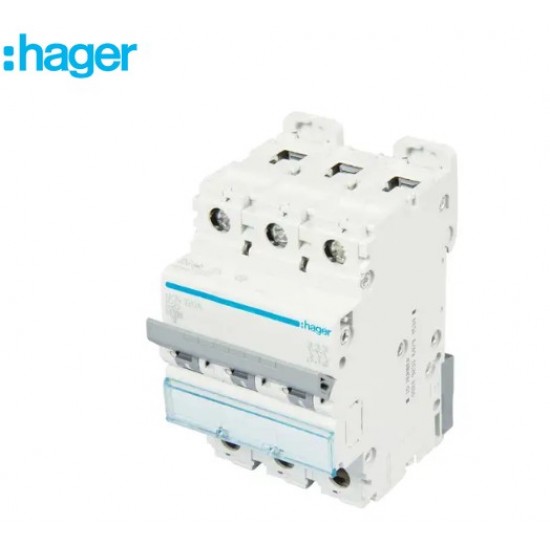

20A TP TYPE C 10KA MCB

Product Information

• Complies with BS EN 60898 [10kA]
• Protection of circuits against short circuits and overload current
• The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour
• Connection capacity : 25mm² flexible conductor, 35mm² rigid conductor
• Current Rating: 20A
• Guarantee: 2 Years
• Incoming Terminal Capacity: 35mm²
• Mounting: DIN Rail
• Number of Modules: 3
• Number of Poles: Triple Pole
• Outgoing Terminal Capacity: 35mm²
• Packaging Types: Each
• Short Circuit Rating: 10kA
• Standards: BS EN 60898
• Tripping Characteristics: C Curve
• Unspsc V18: 39121603
• Unspsc V24: 39121603
• Voltage Rating: 230V
• Weight: 0.34750kg
