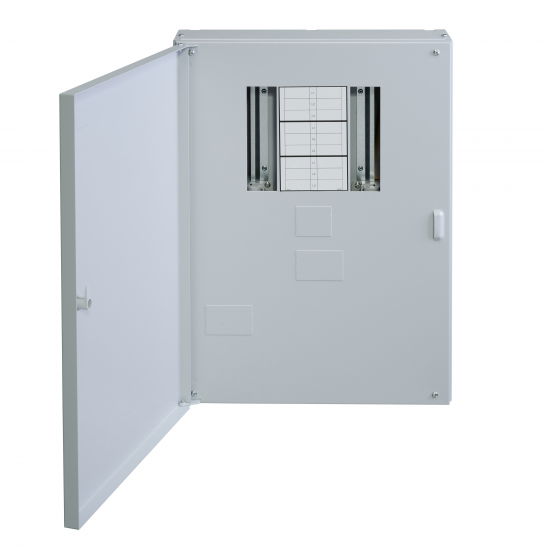

6W 125A TPN DB

Product Overview:

When using 4P Incomer WS124 or any Wylex 4P RCCB as an incomer, the connection kit NH4PINKIT must also be used [sold separately]

Accepts Wylex 10kA and miniature 6kA final circuit protection devices; Single and Triple Pole MCBs from 6A to 63A, Single Pole RCBOs from 6A to 50A and AFDDs from 6A to 40A

• Brand: Wylex
• Current Rating: 125A
• Depth: 155mm
• Dimensions: (H)815 mm x (W)430 mm x (D)155 mm
• Door Type: Hinged Door
• Height: 815mm
• IP Rating: IP31
• Incoming Device: Sold Separately
• Material: Steel
• Mounting: Surface
• Number of Outgoing Ways: 12
• Packaging Types: Each
• Product Range: NH Range
• Standards: BS EN 61439-3
• Type: Type B Distribution Board
• Voltage Rating: 415V
• Weight: 14.1kg
• Width: 430mm
