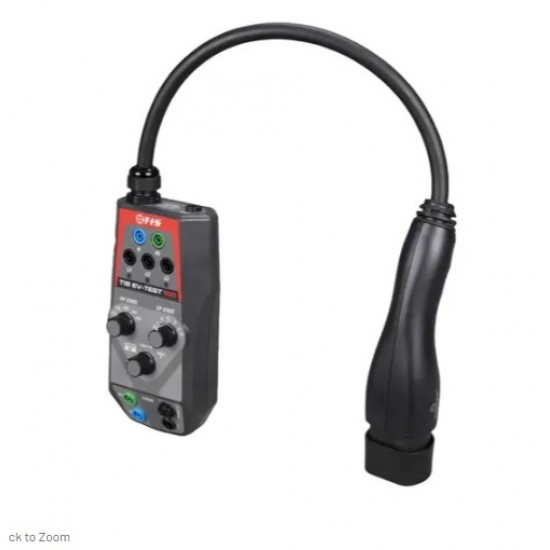

TIS EV Testing Adapter

Product Overview:

• Tests mode 2 and mode 3 charging stations
• Tests type A 30mA, B 6mA and B 30mA RCDs
• Fault simulation [PE and E]
• Phase presence indication
• Type 2 connection
• External load - fused max 10A 230V
• Vehicle status simulation (CP) A,B,C,D
• Cable coding simulation (PP) open, 13A, 20A, 32A and 63A
• Can be used with most multifunction testers
• Brand: Test Instrument Solutions
• Guarantee: 1 Year
• IP Rating: IP40
• Packaging Types: Each
• Previously Known As: TISEV-TEST100
• Standards: IEC/EN61010-1, IEC/EN61851-1, IEC/EN60364-7-722
• Unspsc V18: 41113681
• Unspsc V24: 41113681
• Weight: 2.1kg
