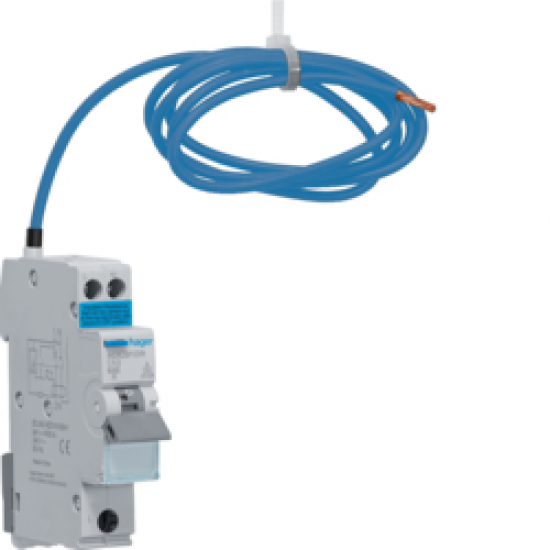

16A C TYPE BIDIRECTIONAL RCBO

Product Overview:

The ADC916R is a compact double-pole RCBO designed for use in Hager consumer units.

It features Bi-Directional double pole switching that responds to both AC and pulsating DC residual currents and is suitable for use with modern electric vehicle chargers. It protects against both overcurrents due to overload and fault and residual current earth leakage.

The 2P switched neutral design and bi-directional functionality, is well adapted for micro-generation applications, where a type A RCBO may be required.

• 16A 30mA C Curve
• Bi-Directional Double Pole RCBO 1P+N (switched neutral)
• Type A for AC and pulsating DC sensitivity
• Suitable for use with EV Chargers
• Retrofit to any Hager Consumer Unit
• Single module Mini RCBO
• Short circuit capacity of 6kA
• Available in 6A-32A variants
• Complies BS 7671:2018 Amendment 2 2022
