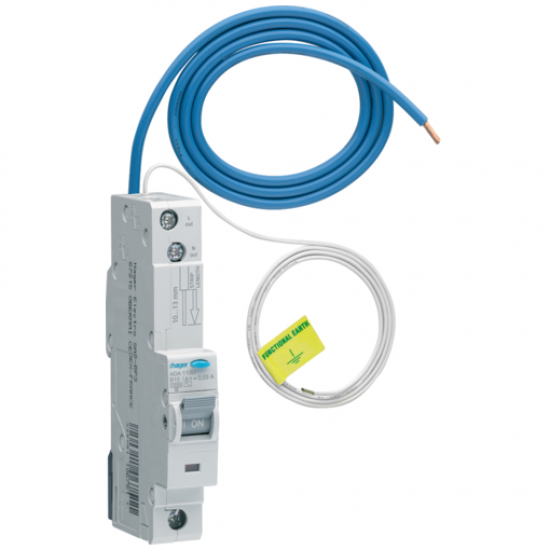

10A RCBO 10KA TYPE B

Product Information:

• Compact protection device
• Combines the overcurrent functions of an MCB with the earth fault functions of an RCCB
• A range of sensitivity and current ratings are available for use in commercial applications
• 700mm insulated neutral lead
• For use with Hager Type B Distribution Boards
• Current Rating: 10A
• Depth: 70mm
• Dimensions: (H)115 mm x (W)17.8 mm x (D)70 mm
• Guarantee: 2 Years
• Height: 115mm
• Mounting: DIN Rail
• Number of Modules: 1
• Number of Poles: Single Pole
• Packaging Types: Each
• Previously Known As: ADA110U
• Rcd Type: A
• Short Circuit Rating: 10kA
• Tripping Characteristics: B Curve
• Tripping Sensitivity: 30mA
• Unspsc V18: 39121601
• Unspsc V24: 39121601
• Voltage Rating: 230V
• Weight: 0.217kg
• Width: 17.8mm
