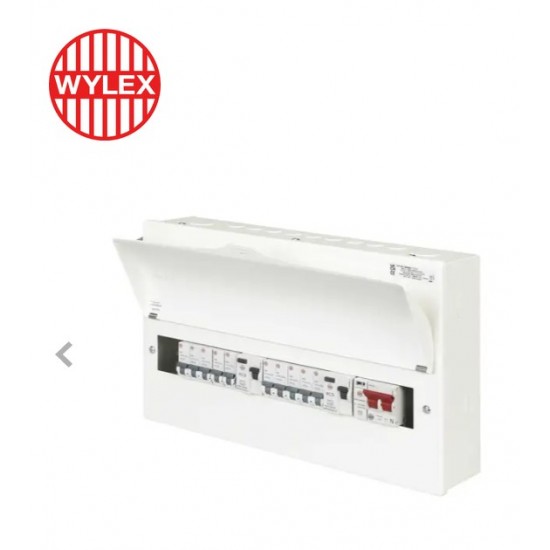

SPD C/W 10MCBS 13WAY FLEX HI/INT 2XRCD

Product Overview:

• Supplied with 2 x 80A 30mA Type A RCDs, 1 x 100A DP isolator and full complement of earth and neutral terminals along with marking labels, busbar and instructions
• Complete with 3 x 6A, 2 x 16A and 5 x 32A B Curve 6kA MCBs
• Type 2 SPD
• Amendment 3 compliant
• Non-combustible enclosure
• Depth: 121mm
• Dimensions: (H)261 mm x (W)438 mm x (D)121 mm
• Door Type: Top Hinged
• Guarantee: 1 Year
• Height: 261mm
• IP Rating: IP2XC
• Incoming Device: 100A DP Isolator
• Incoming Terminal Capacity: 50mm²
• Material: Steel
• Mounting: Surface
• Number of Modules: 21
• Number of Outgoing Ways: 14
• Packaging Types: Each
• Product Range: NM Metal
• Rcd Rating: 80A
• Rcd Type: A
• Standards: BS EN 61439-3
• Supplied With: 1 x Type 2 SPD, 3 x 6A, 2 x 16A and 5 x 32A Type B 6kA MCBs
• Surge Protection Fitted: Yes
• Tripping Sensitivity: 30mA
• Unspsc V18: 39121110
• Unspsc V24: 39121110
• Voltage Rating: 230V
• Weight: 7.57kg
• Width: 438mm
