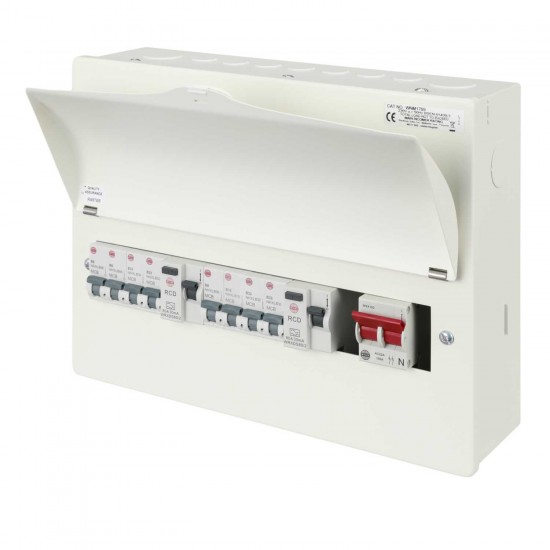

C/W 8 MCBS 10WAY FLEX HIGH INTEGRITY

Product Overview:

• Brand: Wylex
• Board Configuration: Configurable
• Current Rating: 100A
• Depth: 121mm
• Dimensions: (H)261 mm x (W)343 mm x (D)121 mm
• Door Type: Top Hinged
• Guarantee: 1 Year
• Height: 261mm
• IP Rating: IP2XC
• Incoming Device: 100A DP Isolator
• Incoming Terminal Capacity: 50mm²
• Material: Steel
• Mounting: Surface
• Number of Modules: 16
• Number of Outgoing Ways: 10
• Packaging Types: Each
• Product Range: NM Metal
• Rcd Rating:80A
• Rcd Type: A
• Standards: BS EN 61439-3
• Supplied With: 3 x 6A, 1 x 16A and 4 x 32A Type B 6kA MCBs
• Surge Protection Fitted: No
• Tripping Sensitivity: 30mA
• Unspsc V18: 39121110
• Unspsc V24: 39121110
• Voltage Rating: 230V
• Weight: 5.736kg
• Width: 343mm
