8 WAY 100A ISOLATOR

Product Overview:

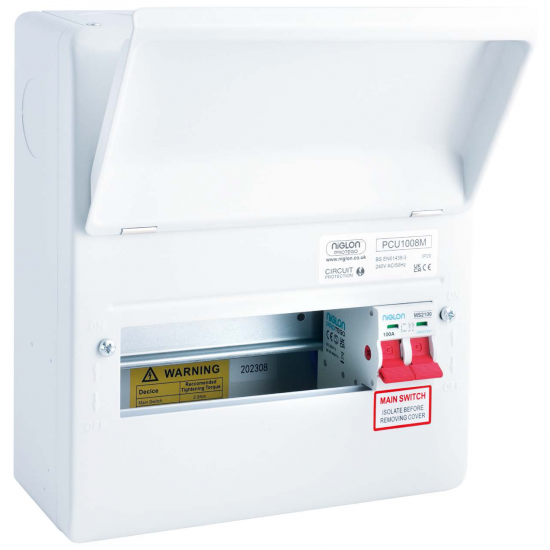

The Niglon Protego PCU1008M 8 Way consumer unit SPD has 8 usable way’s and is supplied complete with tail gland, 100a Main Switch, busbar and din rail.

Installation pack which includes a busbar, identification label pack, grommet strip and Tail Gland

• 8 Usable Ways
• 100A Main Switch Incomer
• Main Switch terminal capacity: 35mm2
• Dual Terminal Mains Switch
• T2 Surge Protection device compatible
• Supplied with Mains Tail Gland
• Variable Sized Knockouts (20mm, 32mm, 40mm)
• Edging Strips Supplied
• Board Height 260mm for ease of cabling
• Busbar Shield
• IP20 Rated
• IK05 Rated
• Constructed of 1.2mm Steel
• Curved Profile designed lid
• Built-in Spirit Level
• Identification label pack
• Dimensions: W 232mm x H 260mm x D 110mm
