4 WAY 100A ISOLATOR

Product Overview:

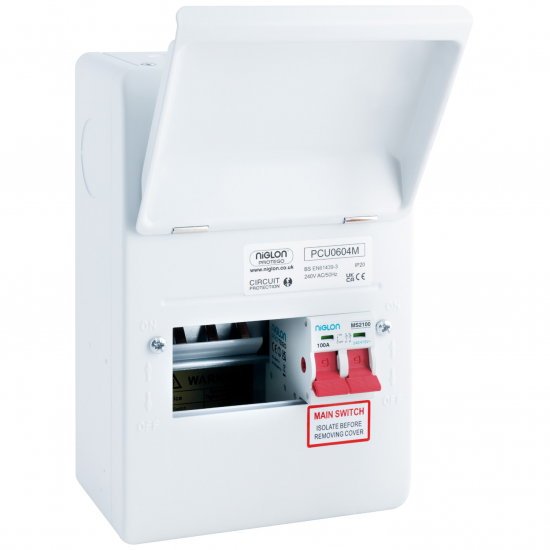

Niglon Protego 6 Modular 4 Way 100A Isolator Metal Consumer Unit – PCU0604M

Part No: PCU0604M

Protego 6 Modular 4 Way 100A Isolator Metal Consumer Unit

Metal Board: Constructed of 1.2mm Steel, with curved edges

Increased Board Height 260mm: More room for cabling on 10-22 way boards

Variable Knock-Outs: 20+32 on the top and bottom, 40mm on the sides

Short Turn Cover Screws@ Provides easy secure fixing when assembling cover after completion of installation

Comes with accessories: Comes supplied with edging strips & 32mm tail gland

• Material Composition: Steel (Power Coated)
• Paint Colour: RAL 9010
• Configurations: 6 Modular 4 Free Ways 100A DP Isolator
• Rated Operational Voltage (Un/Ue): 230V AC
• Rated Current if Assembley (InA): 100A
• Rated Frequency: 50Hz
• Main Switch Terminal Capacity: 35mm²
• IP Rating (Ingress Protection): IP20
• IK Rating (Impact Protection): IK05
• Dimensions 260 (H) x 163 (W) x 110mm (D)
• Standards BS7671:2018, BS EN61439-3
• 100A Mains Isolator Manufactured to EN609
