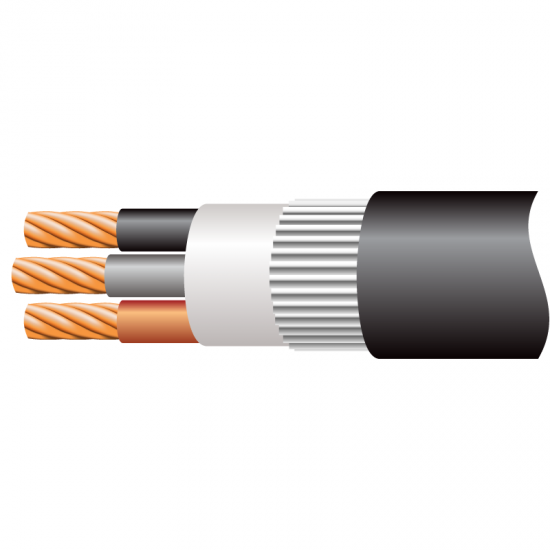

16.0MM 3C SWA XLPE

Product Information:

• 3 Core Steel Wire Armoured Cable – BASEC Approved, Reliable Power Distribution
• The 3 Core SWA Armoured Cable is designed for secure and efficient power distribution in demanding environments. With galvanised steel wire armour for mechanical protection, it is ideal for underground, outdoor, indoor, and ducting installations.
• Versatile Applications: Suitable for mains power distribution in underground, outdoor, indoor, and cable ducting installations.
• Durable Construction: Features stranded plain copper conductors with XLPE insulation, PVC bedding, and a robust PVC sheath.
• Steel Wire Armoured (SWA): Provides mechanical protection, allowing direct burial and enhanced durability.
• Certified Standards: Manufactured to BS5467 and IEC 60502 for high safety and quality compliance.
• Reliable Conductor: Class 2 plain stranded copper conductor to BS EN 60228:2005 (formerly BS6360).
• Standard Colour Coding: Cores in grey, blue, and brown, with a black PVC sheath.
• Voltage Rating: 600/1000V for high-performance electrical installations.
• Temperature Rating: Operates safely between 0°C and +90°C.
• Cable Type: 6943X 3 Core SWA
• Conductor Size: 16.0mm²
• Voltage Rating: 600/1000V
• Temperature Range: 0°C to +90°C
• Sheath Colour: Black
• Standards Compliance: BS5467, IEC 60502, BASEC Approved
