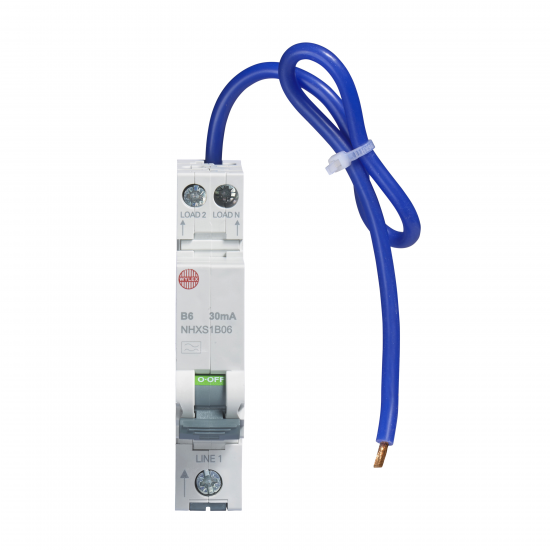

MINI 6A TYPE B 30MA RCBO

Product Overview:

• Brand: Wylex
• Current Rating: 6A
• Depth: 77mm
• Dimensions: (H)90 mm x (W)18 mm x (D)77 mm
• Height: 90mm
• Incoming Terminal Capacity: 0.75mm² to 16mm²
• Mounting: DIN Rail
• Number of Modules: 1
• Number of Poles: Single Pole and Neutral
• Outgoing Terminal Capacity: 0.75mm² to 16mm²
• Packaging Types: Each
• Product Range: NHXS
• Rcd Type: A
• Short Circuit Rating: 6kA
• Standards: IEC 61009-1
• Tripping Characteristics: B Curve
• Tripping Sensitivity: 30mA
• Unspsc V18: 39121601
• Unspsc V24: 39121601
• Voltage Rating: 230V
• Weight: 0.14kg
• Width: 18mm
