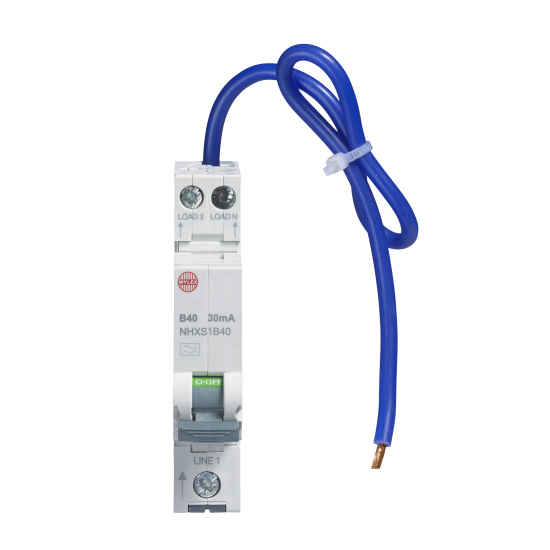

MINI 40A TYPE B 30MA RCBO

Product Overview:

40A 30mA SPswN B Curve 6kA Type A Miniature Bi-Directional RCBO

Single module, Miniature Bi-Directional RCBO

40A B curve (MCB), 30mA Type A (RCD)

Single pole with switched neutral

No miss busbar connection

Fits NM & NMX consumer units and NH L range Distribution Boards

Primary Features

Number of poles (total):2

Rated current (A):40

Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA):6

Rated voltage (V):230

Tripping characteristic (type/curve):B

Width in number of modular spacings:1

Additional Features

Ambient temperature during operating (°C):-5 - 40

Anti-nuisance tripping version:No

Concurrently switching N-neutral:Yes

Connectable conductor cross section multi-wired (mm²):0.75 - 16

Connectable conductor cross section solid-core (mm²):0.75 - 16

Current limiting class:3

Degree of protection (IP rating):IP20

Disconnection characteristic:Undelayed

Frequency:50 Hz

Leakage current type:A

Number of protected poles:1

Over voltage category:3

Rated fault current (A):0.03

Rated impulse-withstand voltage (Uimp) (kV):4

Rated insulation voltage Ui (V):400

Recess depth (mm):73

Voltage type:AC

With interlocking device:No
