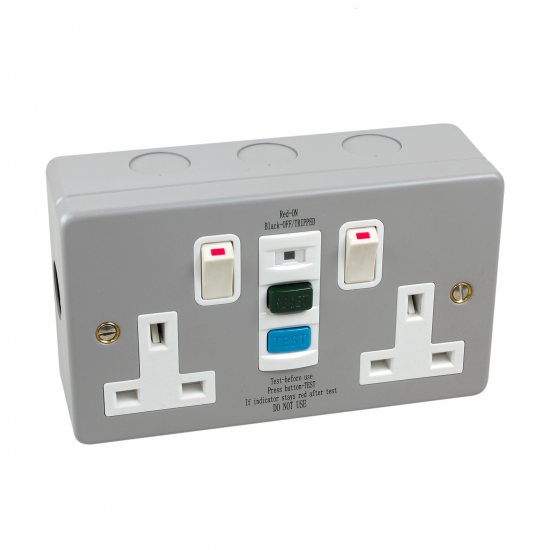

METAL CLAD 13A DP TWIN SOCKET

Product Overview:

The best short circuit and earth leakage protection available with Axiom RCD protection. Perfect for domestic or commercial applications.

General Information

• Colour/Finish: Silver/grey

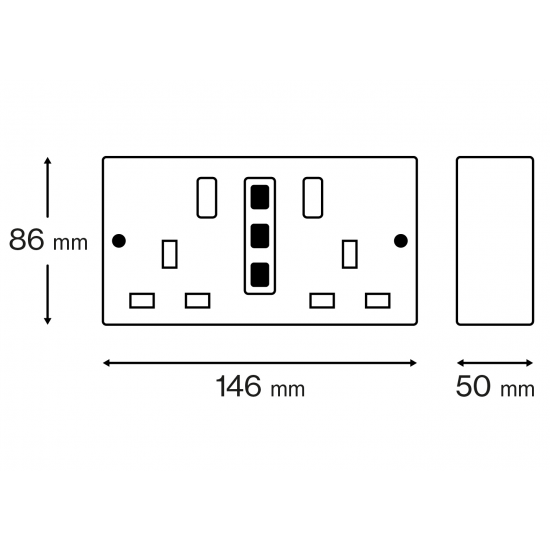

• Dimensions (mm): 146x 86x50mm
• Front Plate Depth (mm): 5mm
• Ingress Protection (IP): IP20
• Minimum Box Depth (mm): 35mm
• Electrical
• Approvals: CE BS7288 BS1363
• Cable Clamp Capacity (mm): 3 x 2.5mm
• Frequency (Hz): 50/60Hz
• Rated Load Capacity (Amps): 10A
• Rated Operating Voltage (v): 240V
• Performance Data
• Flex Inlet: 20mm k/o
• Knockouts: 6
• Outlets (1 / 2) etc: 2
• Switch (1 / 2) etc: 2
• Construction
• Body: Metal clad
• Insert Colour: White
