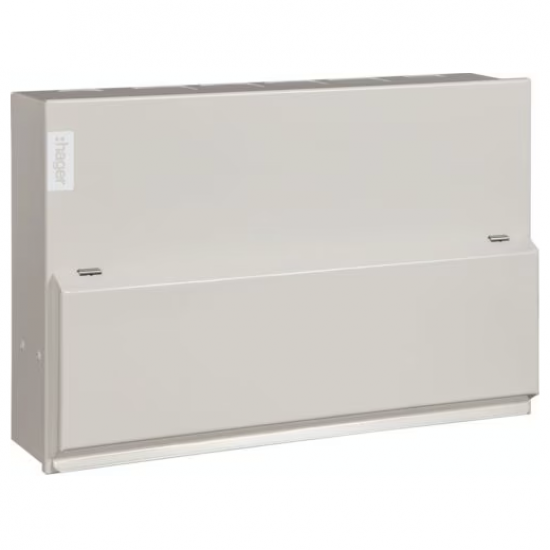

10WAY DUAL RCD BOARD

Product Overview:

 Surface Mounted Consumer Units

Configurable High Integrity

Metal split load and configurable consumer units with the ability to protect selected circuits with RCBOs/MCBs and the remainder of circuits split across two RCCBs.

All Design 10 consumer units contain top, bottom & rear knockouts and a meter tail cable entry plate (VM04CE) as standard

Supplied with 2 x Type A RCCBs, a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions.

Conforms to BS EN 61439-3 Including Annex ZB (16kA rating).

Primary Features

Degree of protection (IP rating):IP2XC

Depth (mm):100

Height (mm):245

Protection:Other

Width (mm):368.4

Additional Features

Cooker group suitable as power current group:No

Extension possible:Yes

Housing material:Steel

Lockable:No

Main switch rated current (A):100

Mounting method:Surface mounted

Number of earth leakage switches 30 mA:2

Number of earth leakage switches 300 mA:0

Number of phases:1

Number of poles main switch:2

Over voltage-/surge protection:No

With bell transformer:No

With socket outlet:No

With transparent cover:No
