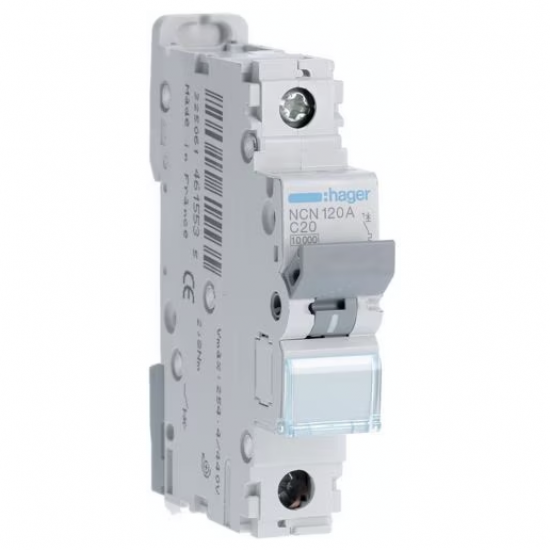

20A SP TYPE C 10KA MCB

Product Overview: Primary Features

Number of poles (total): 1

Rated current (A): 20

Rated short-circuit breaking capacity Icn EN 60898 at 230 V (kA): 10

Rated voltage (V): 400

Tripping characteristic (type/curve): C

Width in number of modular spacings: 1

Additional Features

Additional equipment possible:Yes

Ambient temperature during operating (°C):-25 - 70

Concurrently switching N-neutral:No

Connectable conductor cross section multi-wired (mm²): 1 - 25

Connectable conductor cross section solid-core (mm²): 1 - 35

Current limiting class: 3

Degree of protection (IP rating): IP20

Frequency (Hz): 50 - 60

Number of protected poles: 1

Over voltage category: 3

Pollution degree: 2

Rated impulse-withstand voltage (Uimp) (kV): 6

Rated insulation voltage Ui (V): 500

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (kA): 15

Recess depth (mm): 70

Voltage type: AC
