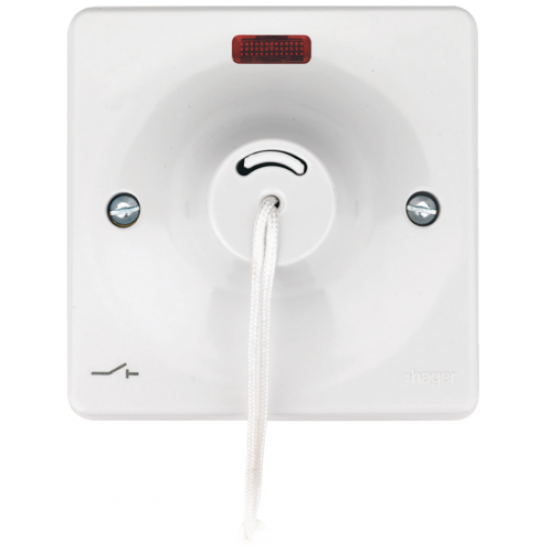

50A DP CEILING SWITCH

Product Overview:

50A White Double Pole Ceiling Switch with LED Indicator

Complies with BS EN 60669-2-4.

Rated conditional short circuit current (Inc) 1500A tested with Hager MTN150 6kA B Curve MCB

Suitable for use with showers up to 11.5kW

Position of the contacts shown by flag indicator

Supplied with M3.5 x 30mm fixing screws.

Capacity of each terminal: 1 x 16mm² conductors

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):63

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Pull cord

Nominal voltage (V):240

Number of rockers/gangs:0

Rated current (A):50

Width of device (mm):86

Wiring system:2-pole switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Control and orientation

Halogen free:Yes

Illumination:Yes

Label space/information surface:Yes

Mounting method:Flush mounted

Number of module spaces (modular system):0

Push button switch:No

Recess depth (mm):24

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):50

Type of fastening:Screw mounting

Type of lighting:Glow lamp

Washing machine switch:No

With mounting plate:Yes
