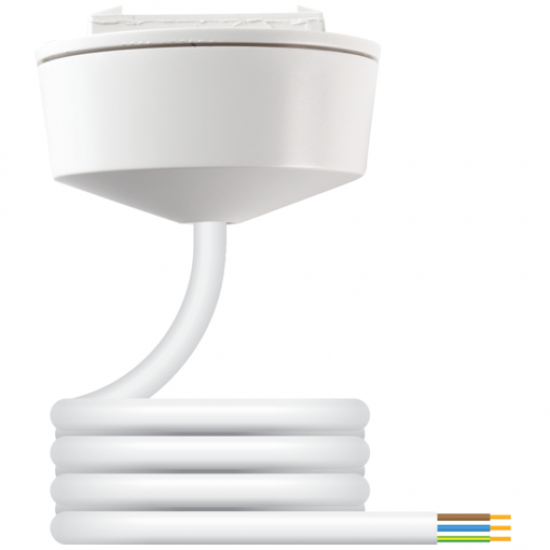

CEILING ROSE C/W 2M FLEX LEAD

Product Overview: Primary Features

Cable diameter (mm):7 - 7

Cable type:H05VV-F

Degree of protection (IP rating):IP20

Number of poles:3

Rated current (A):6

Rated voltage (V):240

Total length (mm):2000

Additional Features

Cable permanent temperature-resistant to (°C):90

Conductor end treatment:Cable end sleeves

Dismantle length (mm):50

Halogen free:No

Housing colour:White

Mechanical coding:Yes

Nominal cross sectional area of conductor (mm²):0.75

Pole codification:L, N, PE

Pollution degree:2

Sheath colour:White

Strip length (mm):7

Surface finish contacts:Untreated

Type of finished cable:Device connection cable

Type of locking:Integrated in plug-in connector

Type side 1:Plug

Type side 2:Free conductor end
