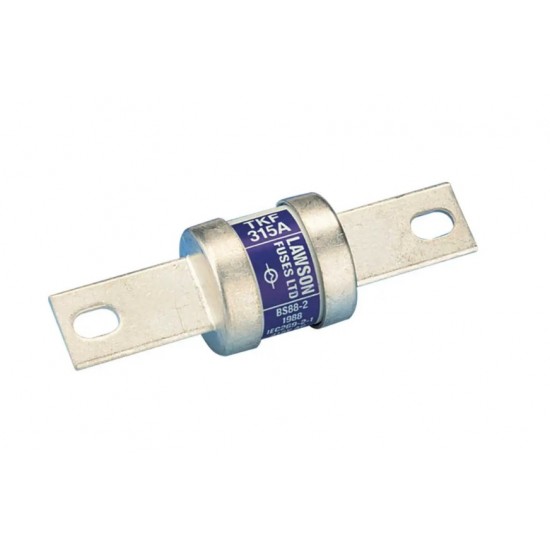

315A 415V HRC FUSE

Product Overview:

• Brand: Lawson Fuses
• Colour: Blue/White
• Compliance: CE
• Current Rating: 315A
• Diameter: 41mm
• Dimensions: (L)137 mm x (Dia)41 mm
• Fixing Centres: 111mm
• Fuse Reference: TKF
• Guarantee: 1 Year
• Length: 137mm
• Packaging Types: Box
• Rated Breaking Capacity: 80kA AC 40kA DC
• Rated Voltage: 415V AC 250V DC
• Standards: IEC 60269-2, BS 88-2
• Type: N&T
• Unspsc V18: 39121611
• Unspsc V24: 39121611
• Weight: 0.24000kg
• BS industrial fuse links with bolted connections to IEC 60269-2, BS 88-2
• Breaking range and utilisation category: gG
• BS 88 reference: B3
