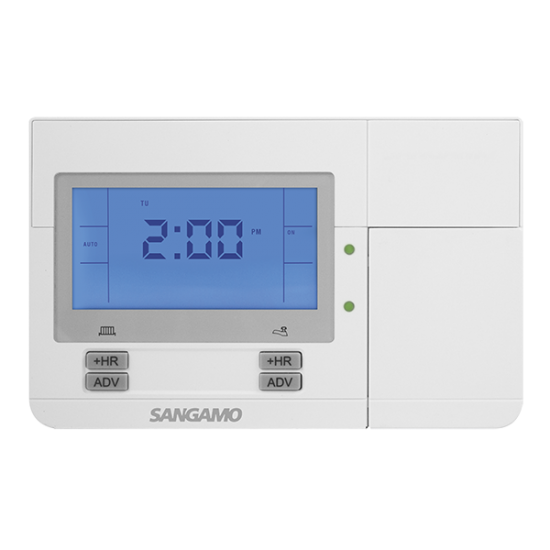

2 CHANNEL PROGRAMMER

Product Information

• 24 hour, 5/2 day and 7 day programmable
• 2 or 3 on/off periods selectable
• 1, 2 or 3 hour boost
• Holiday mode
• Pre-programmed schedule ready for use
• Summer/winter time change
• With/without service interval function
• Suitable for pumped and gravity systems
• Battery Back Up: Yes
• Battery Size: CR1225
• Battery Type: Lithium
• Boost: 1, 2 or 3 hrs
• Colour: White
• Compliance: CE
• Current Rating: 2A
• Current Rating Inductive: 1A
• Depth: 32.1mm
• Dimensions: (H)88.6 mm x (W)140 mm x (D)32.1 mm
• Finish: White
• Gravity Fully Pumped: Gravity or Fully Pumped
• Guarantee: 3 Years
• Height: 88.6mm
• Holiday Setting: Yes
• IP Rating: IP30
• Industry Standard Backplate: Yes
• Manual Override: Yes
• Material: Thermoplastic
• Maximum Operating Temperature: 40°C
• Minimum Operating Temperature: 0°C
• Mounting: Wall
• Number of Channels: 2
• Number of On offs: 3
• Packaging Types: Each
• Product Range: Choice
• Programming Type: 24 Hour, 5/2 & 7 Day
• Standards: EN 60730-1, EN 60730-2-7, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC
• Unspsc V18: 39121523
• Unspsc V24: 39121523
• Voltage Free Contacts:Yes
• Voltage Rating: 230V
• Weight: 0.31kg
• Width: 140mm
