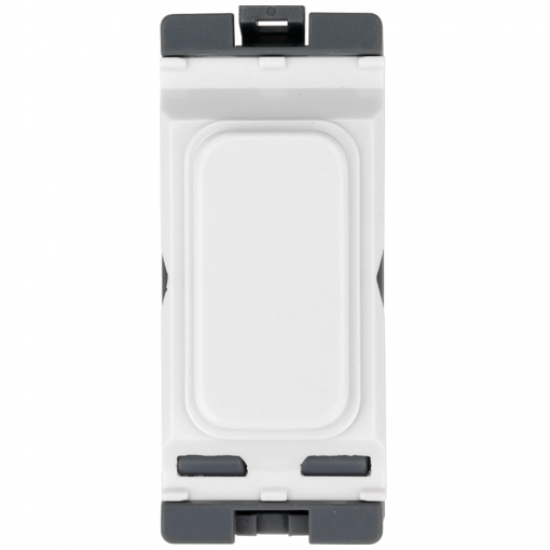

BLANK MODULE

Product Overview:

Part M White Blank Module

Complies with BS EN 606691-1 switches, BS 5733 fuse carrier

Shallowest switch modules which clip in from the front for ease of installation and maintenance

Terminal screw can be accessed with modules clipped into frames

Frames locate to finished wall level

Frames clip together to ease alignment for 6 gang and 8 gang applications

We also offer a bespoke printing service for your individual requirements

Primary Features

Application:Blank insert

Assembly:Full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):25

Height of device (mm):60

Material:Plastic

Material qualifier:Urea formaldehyde

Width of device (mm):25

Additional Features

Halogen free:Yes

Imprintable label:Without indication field

Luster terminal:No

Mounting method:Flush mounted

Number of module spaces (modular system):1

Support ring:No

Surface finish:Glossy

Surface protection:Untreated

Transparent:No

Type of fastening:Engage (snap)

With buses/couplings:No

With dust cover:No

With hinged lid:No

With imprint:No

With strain relief:No
