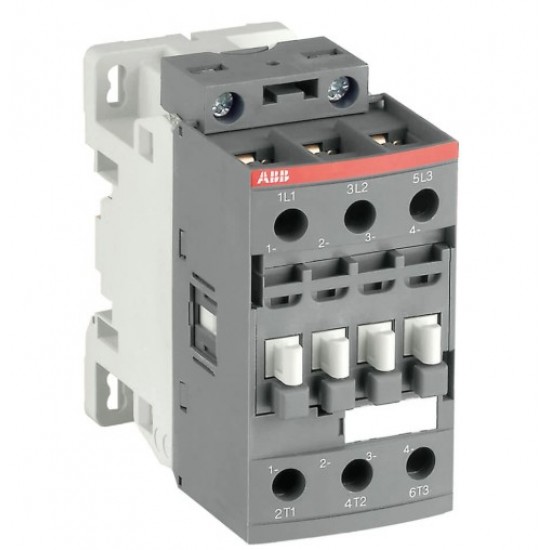

100-250V DC CONTACTOR

Product Overview:

3 Pole Contactor, 4KW, 1 NO Auxiliary

A durable 4kW, 3 Pole Contactor, with NO contacts and with 1 built-in NO auxiliary contact, with secure screw terminals. Suitable for a wide array of applications such as motor starting, isolation, by-pass, and electrical distribution applications up to a maximum of 690 V.

Operated with a wide control voltage range of 20 to 60 VDC managing large control voltage variations and reducing panel energy consumption, and providing reliable operation in unstable networks, surge protection is built in. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

3 Pole Contactor Features

• 3 Main contacts NO, 1 Auxiliary contact NO
• Power rating 2.5 kW at 240 V, 5.5 kW at 690 V (AC-3)
• Rated operational voltage – main circuit 690 VAC
• Rated operational current 9A (AC-3), 25A (AC-1)
• Rated impulse withstand voltage 6 kV
• Dimensions HxWxD  86 x 45 x 77 mm
