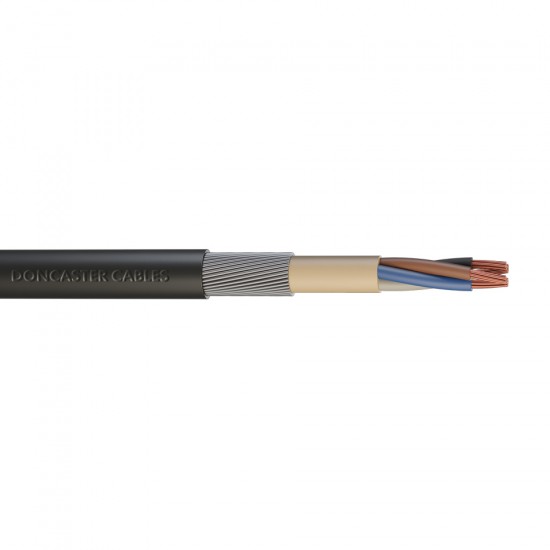

16.0MM 4C SWA XLPE (sold per mtr)

Product Information:

• Colour: Black
• Conductor: 16mm²
• Stranding: 7/1.70
• Cores: 4
• Weight: 1269kg/km
• Diameter: 21.95mm
• Gland Size: 25
• Cleat Size: 0.9
• Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and in cable ducting.

Standards

• Flame propagation: BS EN/IEC 60332-1-2
• BS 5467
• BASEC Approved

Construction

• Conductor: Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)
• Insulation: Cross Linked Polyethylene (XLPE)
• Bedding: PVC (Polyvinyl Chloride)
• Armour: SWA (Steel Wire Armour)
• Sheath: PVC (Polyvinyl Chloride)

Characteristics

• Voltage Rating: 600/1000 volts
• Temperature Rating: Fixed: -15°C to +90°C
• Minimum Bending Radius: As Per Manufacturers Datasheet
• Should not be installed at temperatures below 0°C or above +60°C.

Core IDs

• 2 core: Brown, Blue
• 3 core: Brown, Black Grey
• 4 core: Brown, Black, Grey, Blue
• 5 core: Brown, Black, Grey, Blue, Green/Yellow
• *additionally, these cables are stocked with
• 3 core: Brown, Blue, Green/Yellow
• 5 core and above up to 6mm2: White numbered cores
• 2, 3, 4 or 5 core 1.5mm2 & 2.5mm2: White numbered cores to ESI 09-6
