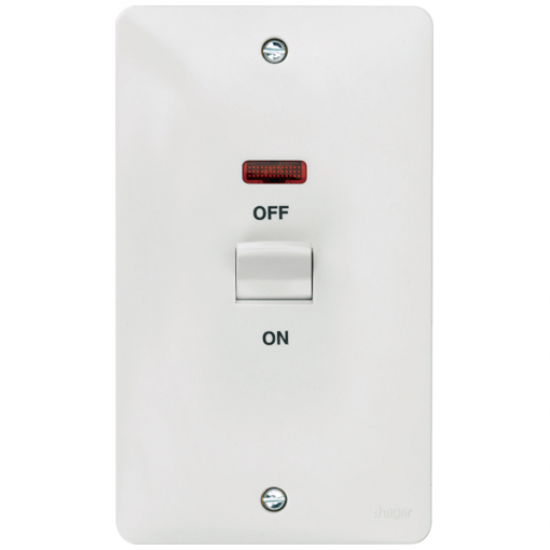

50A DP SWITCH 2G VERTICAL

Product Overview:

50A Double Pole White Vertical Wall Switch 2 Gang with LED Indicator

Complies with BS EN 60669-2-4.

Rated conditional short circuit current (Inc) 1500A tested with Hager MTN150 6kA B curve MCB.

All terminal screws upward facing for ease of installation.

Clearly printed terminal marking.

Capacity of each terminal: 2 x 6mm2 , 1 x 10mm2

Supplied with M3.5 x 30mm long fixing screws and screw covers

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Assembly:Basic unit with full cover plate

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):39.6

Height of device (mm):86

Material:Plastic

Material qualifier:Urea formaldehyde

Method of operation:Rocker

Nominal voltage (V):240

Number of rockers/gangs:1

Rated current (A):50

Width of device (mm):86

Wiring system:2-pole switch

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Feedback-signal contact:No

Function lighting:Illuminated (on)

Halogen free:Yes

Illumination:Yes

Label space/information surface:Yes

Mounting method:Flush mounted

Number of module spaces (modular system):0

Push button switch:No

Recess depth (mm):22.6

Surface finish:Glossy

Surface protection:Untreated

Switching current for fluorescent lamps (AX):50

Type of fastening:Screw mounting

Type of lighting:LED replaceable

Washing machine switch:No

With mounting plate:No
