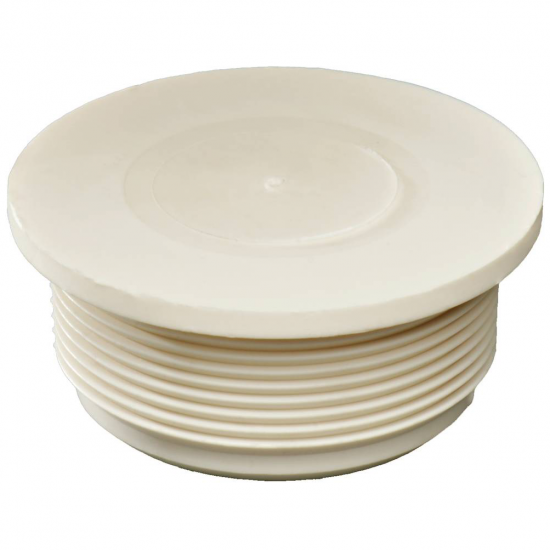

32MM MEMBRANE GROMMET

Product Overview:

• Material: TPE, flame-retardant
• Temp. range min:-40 °C
• Temp. range max: 80 °C
• Glow wire test: 960 °C
• Protection class: IP66

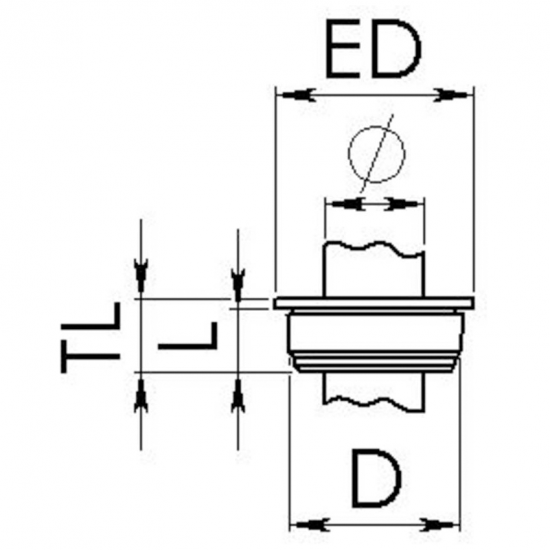

• Ø Connection thread D: 32
• Length screw-in thread L: 9,5 mm
• Ø cable diameter min: 1 mm
• Ø cable diameter max: 25 mm
• External diameter ED: 37 mm
• Total length TL: 11 mm
• Ø Drilling: 30 mm - 31,2 mm
• Wall thickness S: 2 mm
• Product Color: white
• Order no. RAL 9001: 10063009
• Type: EMT-F 32 WH
• Packing unit: 100
• EAN number: 4007685630092
• Tariff number: 39269097
• ETIM-Classification: EC000451
