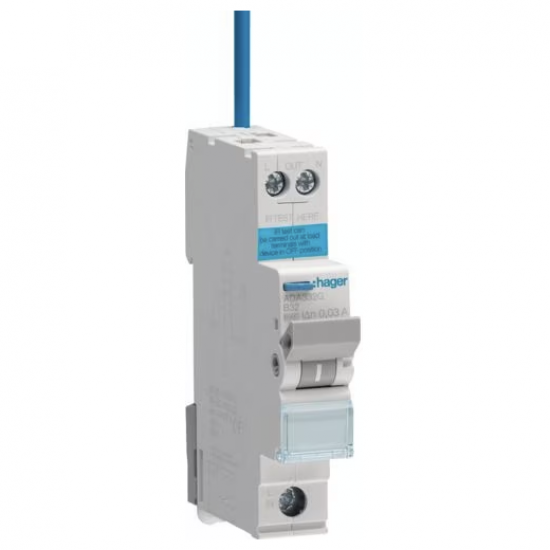

32A 30MA RCBO

Product Overview:

• Current Rating: 32A
• Depth: 70mm
• Dimensions: (H)92 mm x (W)17.7 mm x (D)70 mm
• Height: 92mm
• Incoming Terminal Capacity: 25mm²
• Mounting: DIN Rail
• Number of Modules: 1
• Number of Poles: Single Pole
• Outgoing Terminal Capacity: 25mm²
• Packaging Types: Each
• Rcd Type: A
• Short Circuit Rating: 6kA
• Standards: BS EN 61009-1, IEC 1009-2-2
• Tripping Characteristics: B Curve
• Tripping Sensitivity: 30mA
• Unspsc V18: 39121601
• Voltage Rating: 230V
• Weight: 0.148kg
• Width: 17.7mm
