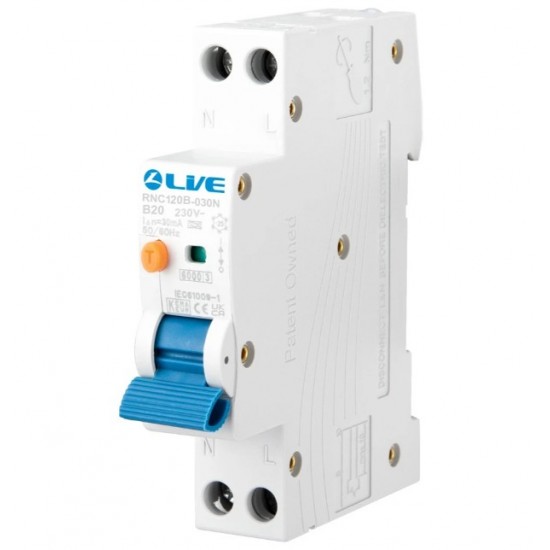

20A 30MA TYPE A 6KA RCBO

Product Information

This RCBO is ONLY compatible with Live SRN Consumer Units (LSMCSRN**/100) With Live Electrical Dual Busbars. It is not suitable for standard consumer units or those requiring flying neutral connections.

The Live RNC120B-030N is a compact, high performance plug on neutral RCBO designed for fast installation and reliable circuit protection in modern consumer units. Featuring a double pole, bidirectional design, it delivers combined protection against overload, short circuit and earth leakage for maximum safety.

• Plug-on neutral design - no flying lead for faster install
• 20A B Curve - ideal for lighting circuits
• Double pole switching - isolates both live and neutral
• 30mA sensitivity - enhanced protection against electric shock
• Type A - detects AC and pulsating DC fault currents
• Bidirectional - ideal for solar PV systems
• Compact module - maximises space within the consumer unit
• Current rating: 20A
• Tripping curve: B Curve
• Residual current: 30mA
• Breaking capacity: 6kA
• Voltage: 230V AC
• Device type: Type A RCBO
• Poles: Double Pole (1P+N)
• Mounting: Plug-on neutral (SRN dual busbar systems only)
• Standard: BS EN 61009-1 compliant
