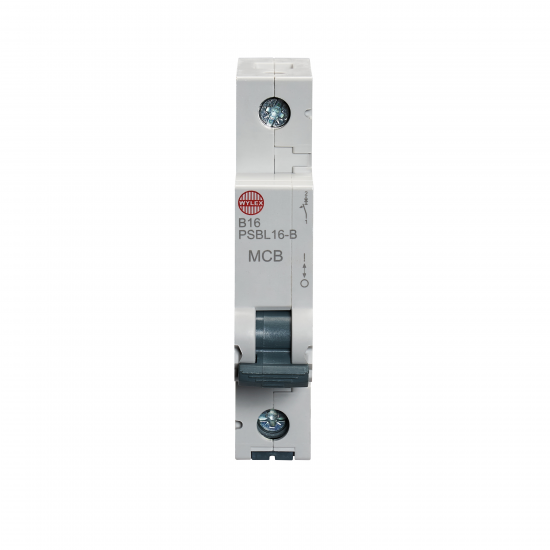

16A SP MCB TYPE B 10KA

Product Information:

• B curve trip characterisitic
• 10kA to BS EN 60898-1 [15kA to BS EN 60947-2]
• Energy limiting Class 3
• Brand: Wylex
• Current Rating: 16A
• Depth: 76mm
• Dimensions: (H)90 mm x (W)18 mm x (D)76 mm
• Guarantee: 1 Year
• Height: 90mm
• Incoming Terminal Capacity: 25mm²
• Mounting: DIN Rail
• Number of Modules: 1
• Number of Poles: Single Pole
• Outgoing Terminal Capacity: 25mm²
• Packaging Types: Each
• Product Range: NH
• Short Circuit Rating: 10kA
• Standards: BS EN 60898-1
• Tripping Characteristics: B Curve
• Unspsc V18: 39121603
• Unspsc V24: 39121603
• Voltage Rating: 230V
• Weight: 0.086kg
• Width: 18mm
