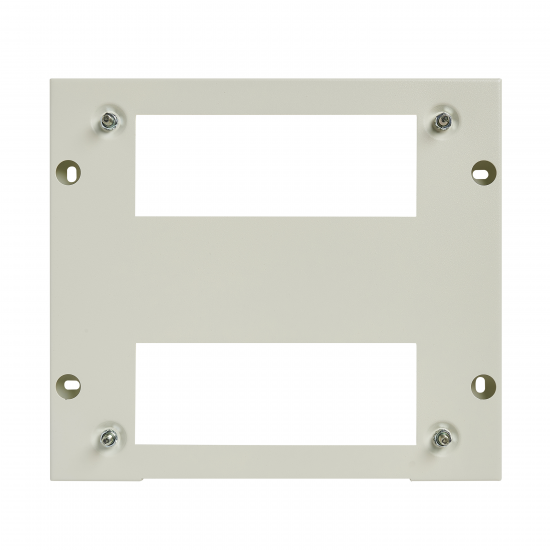

13 MOD PATTRESS

Product Overview:

The MNSPE-6462/DNR pattress is 16mm deep and has a long slot on one side and a large open apperture that lines up with the rear entry cable knockouts on the back of the relative consumer unit. This provides a path for cables from the mini trunking down to the rear entry slots and allows all cables to enter without removing any knockouts on the sides of the unit, complying automatically with the IP rating Requirements.

Compliant with BS7671 Regulation 416.2.2

Top or Bottom entry (By reversing the plate)

Sturdy steel Construction

Dimensions - 255mm (Height) x 282mm (Width) x 16mm (Depth)

Suitable for any 13 Way NM All Metal Consumer Unit

Compatible with - NM1106, NMRS1106 or NMRS9SLM
