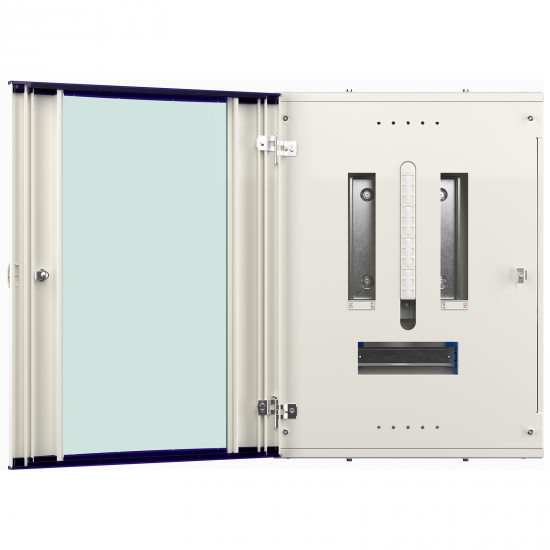

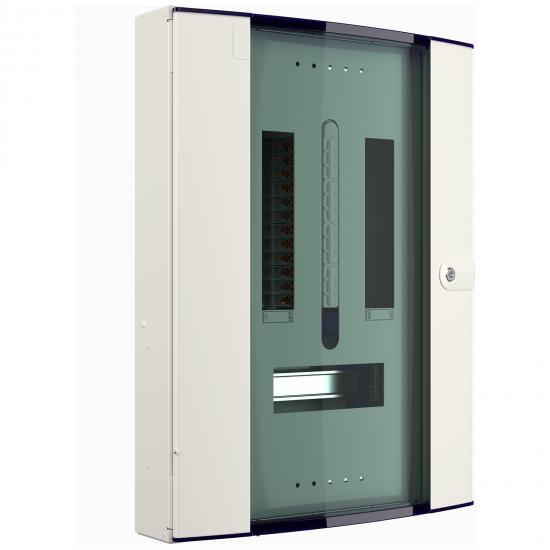

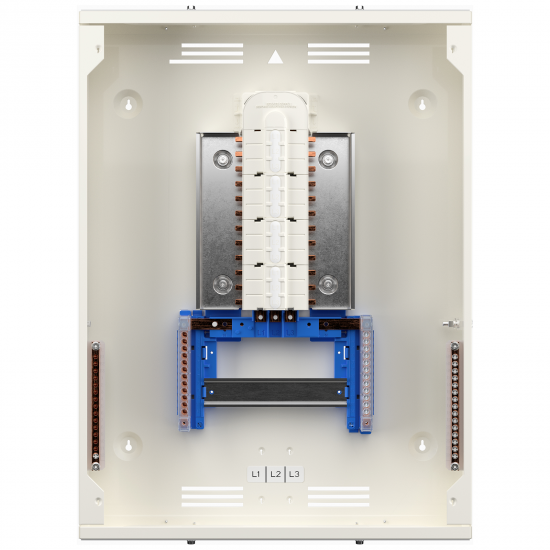

125A 8 WAY TPN BOARD GLAZED

Product Information:

• Enclosure degree of protection IP3X
• Supplied without incoming and outgoing devices
• Complies with BS EN 60439-3
• Incoming device must be 100A or 125A [all options sold separately and fits within board - JK11003S / JK11004RH / JK11004RL / JK11004RLD / JK11004RM / JK11004RMD / JK11004S / JK11253S / JK11254S / JK11254D]
• Hanging triangle for easy installations. Simply place a screw in the wall and hang the board. Then fix
• Glazed door gives great aesthetics, especially when sited in public areas and allows for checking of device status through locked doors
• Unique trunking entry, top and bottom, enables quick fitting to trunking without the extra cost in time and materials
• Clear shrouded neutral bar allows for cable installation without removing the shroud
• Busbar Rating: 125A
• Current Rating: 125A
• Depth: 132.5mm
• Dimensions: (H)625 mm x (W)465 mm x (D)132.5 mm
• Door Type: Glazed Door
• Guarantee: 2 Years
• Height: 625mm
• IP Rating: IP3X
• Incoming Device: Not Supplied
• Incoming Terminal Capacity: Earth - M8 Stud, Neutral - 50mm² or M5 Stud
• Lockable: Yes
• Material: Steel
• Mounting: Surface
• Number of Outgoing Ways: 8
• Packaging Types: Each
• Product Range: Invicta 3
• Standards: BS EN 60439
• Type: Distribution Board
• Unspsc V18: 39121110
• Unspsc V24: 39121110
• Voltage Rating: 230V 400V
• Weight: 10.50000kg
• Width: 465mm
