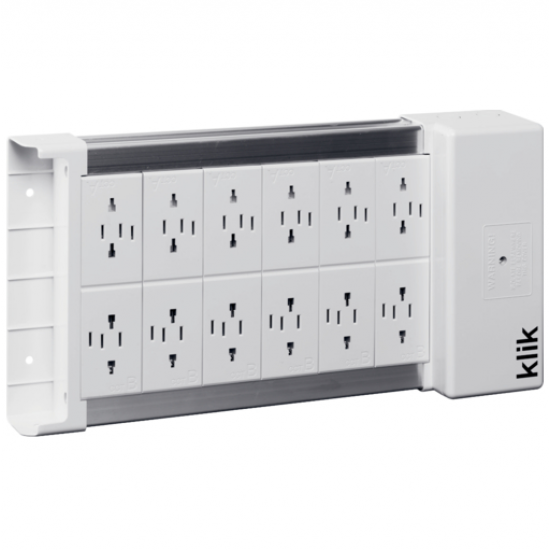

12 WAY KLIK DISTRIBUTION BOX

Product Overview:

• Colour: White
• Current Rating: 16A
• Depth: 73mm
• Dimensions: (H)222 mm x (W)388 mm x (D)73 mm
• Guarantee: 1 Year
• Height: 222mm
• Material: Aluminium/Phosphor Bronze
• Mounting: Ceiling / Wall
• Number of Outlets: 12
• Packaging Types: Each
• Product Range: Klik
• Standards: BS 5733
• Type: Klik Lighting Distribution System
• Unspsc V18: 39121303
• Unspsc V24: 39121303
• Voltage Rating: 230V
• Weight: 2.019kg
• Width: 438mm

Main terminal capacity: 5x4mm²

Flexible conducter terminal capacity: 1x1mm²

All socket outlets are factory connected and tested

All plastic is 'V0' rated

Socket outlets accept either klik lighting 3 pin plugs, klik AX 4 pin plugs and klik pre-wired leads

Cable entries will accept 20mm or can be drilled out to 25mm

Self-retained cover screw
