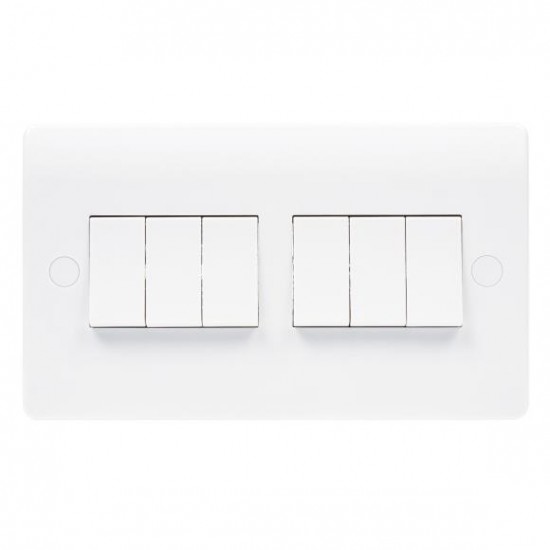

10A 6G 2W SWITCH

Product Information:

• No. Gangs and Ways: 6 Gang, 2 Way
• Material Composition: Front Plate -
• Urea Rear Housing - Nylon
• Terminals - Brass,
• Terminal Screws - Steel & Yellow Passivated
• Internal Mechanism - Formed Press Brass
• Silver “on-lay” Copper / Brass Contacts
• Voltage: 240V~ 50Hz
• Current Rating: 10AX (suitable for inductive loads)
• Terminal Size: 3.5mm ø
• Torque Value: 0.4Nm
• Cable Size: 4 x 1.5mm2 or 2 x 2.5mm2
• Back Box Depth: 25mm
• Modular: Yes
• Warranty: 20 Years
• Anti Microbial Certified: Yes
• IP Rating: IP20 Operational Temperature-5˚ to +40˚C
• Standards: The Low Voltage Directive 2006/95/EC BS EN 60669-1:1999 + A1:2002 + A2:2008 Modified ISO 22196
• Dimensions: 86x146x9.5mm (HxWxD)
