100A IS0 13WAY SPD 10XRCBOS

Product Overview:

• Brand: Wylex
• Surface mounted (plaster)| miniature- / earth leakage circuit breaker
• 13 way main switch consumer unit - fitted with NMT2SPD3W/1 type 2 SPD
• Includes a 100A main switch with twin line and neutral supply terminals
• Fitted with 4x 32A B-Curve RCBOs (NHXD1B32)| 2x 16A B-Curve RCBOs (NHXD1B16)| 4x 6A B-Curve RCBOs (NHXD1B06) and 3x metal blanks (EMB1W)
• 1x 100A 2-pole main switch

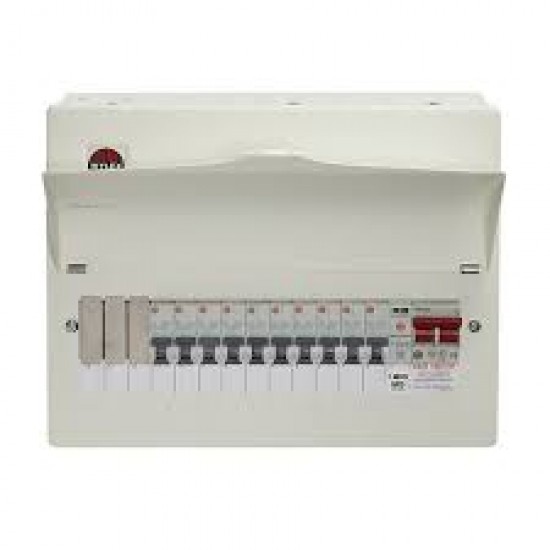

• Image shows standard NM1306LS consumer unit - product will be delivered fully loaded as advertised
• Constructed from full steel enclosure with curved visor and locking facility
• Fixed busbar assembly
• BS EN 61439-3
• Dimensions (H x W x D): 261 x 343 x 121mm
