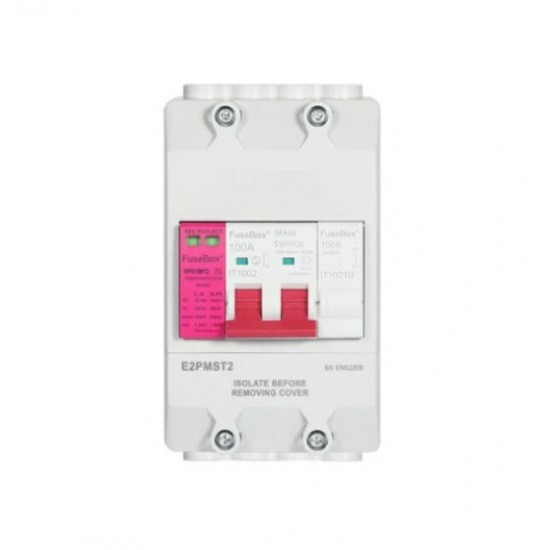

100A 2P MAIN SWITCH + SPD

Product Information:

Number of poles: 2P

Rated impulse withstand voltage: 6000V

Rated current: 100A

Rated voltage: 230V, 50Hz

Mechanical endurance: 2000

Protection degree: IP20

Operating temperature: -25°C to 40°C

Terminal size: 35mm²

Tightening torque (Nm): 2.5Nm (main switch)

Enclosure material: PC

Type 2 SPD:

- Standard: EN 61643-11 (Type 2)

- Flag indication: Green: Good / Red: Replace

- Technology: MOV (Metal Oxide Varistor) /GDT (Spark Gap)

- Voltage (Un): 230V~

- System: TN-C-S, TN-S, TT

- Terminal capacity: L: 16mm² N/PE : 10mm²

- Recommended torque: L: 2.5Nm /PE 1.2Nm / N 1.2Nm

- Maximum operating voltage (Uc): L-PE 275V; N-PE 255V

- Nominal discharge current: (In 8/20µs) 20kA

- Maximum discharge current: (Imax 8/20µs) 40kA

- Voltage protection level: L-PE =1.5kV ; N-PE =1.3kV

- Response time (tA): =25ns

- Maximum back up fuse: 100A fuse gG

- Short circuit withstand (IsccR): 25kA

- Temporary overvoltage (UT): 335V/5 sec - withstand
