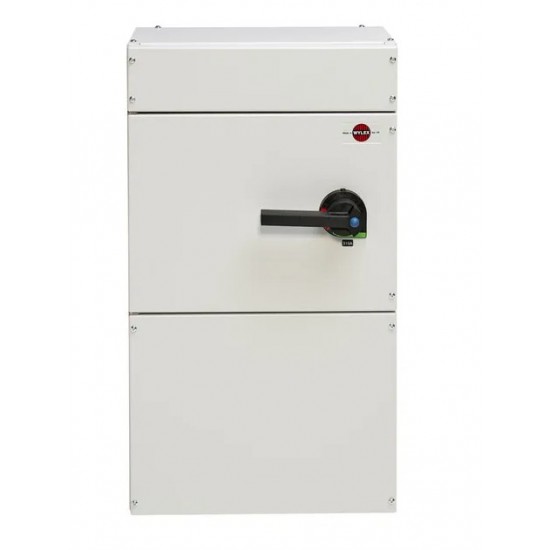

315A 3P&N SWITCHFUSE

Product Overview:

• Supplied without fuses - switch only (Shape B1-B3 fuse required)
• Painted RAL 7035 steel enclosure
• Front door reversible, opening to 180 degrees
• Operating handle can be padlocked
• Accommodates cable spreading room up to 300mm2 4 core
• Spreading room is allowed at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB4 - sold separately) is required
• IP40 rated
• BS EN 69047-3, IEC 60947-3, BS EN 61439-13
• Dimensions (H x W x D): 800 x 420 x 305mm
