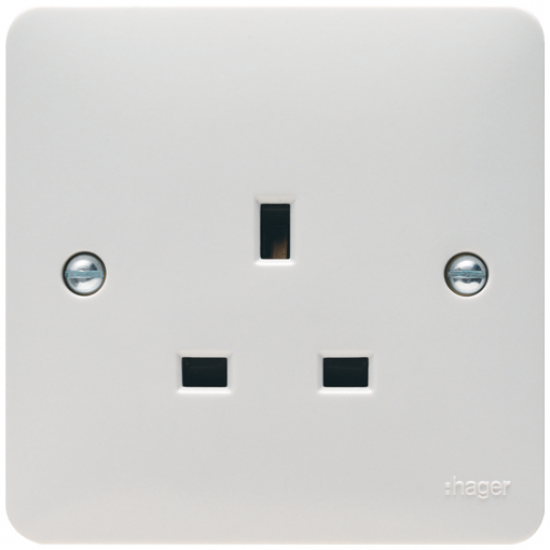

13A 1G UNSWITCHED SOCKET

Product Overview:

13A 1 Gang White Unswitched Socket

Unique patented three part safety shutter.

Complies with BS 1363-2, a.c only.

Double pole switching mechanism on switched sockets.

All terminal screws grouped in-line and upward facing for ease of installation.

Clear printed and engraved terminal markings.

Capacity of each terminal: 3 x 4mm2 conductors switched & unswitched

WMSS82USB(S) - Warning: To avoid possible damage to the product or spurious insulation readings, please disconnect the product before carrying out insulation resistance testing.

WMSS82USB(S) USB output: 5V d.c. 2.4A total max.

Supplied with M3.5 x 30mm long fixing screws and screw covers.

High-quality grade Urea Formaldehyde material with antiviral & antibacterial properties certified to ISO 22196:2011 & ISO 21702

Primary Features

Colour:White

Degree of protection (IP rating):IP20

Depth of device (mm):26

Height of device (mm):86

Material:Plastic

Model:British Standard

Nominal current (A):13

Nominal voltage (V):250

Width of device (mm):86

With on/off switch:No

UK Specific Standards

Additional Features

Connection type:Screwed terminal

Eject-mechanism:No

Fault current protection:No

Frequency (Hz):50 - 60

Halogen free:Yes

Impact resistance (IK rating):Other

Imprint/indication:Without imprint

Insulated mounting:No

Label space/information surface:No

Lockable:No

Mounting method:Flush mounted

Number of active contacts (rectangular):2

Number of active contacts (round):0

Number of module spaces (modular system):0

Number of phases:1

Number of switchable socket outlets:0

Over voltage-/surge protection:No

Rotated central insert:No

Special power supply:No special power supply

Surface finish:Glossy

Surface protection:Untreated

Transparent:No

Type of fastening:Mounting with screw

With enhanced contact protection:Yes

With function lighting:No

With hinged lid:No

With indicator lamp:No

With loop through function:Yes

With miniature fuse:No

With orientation lighting:No
